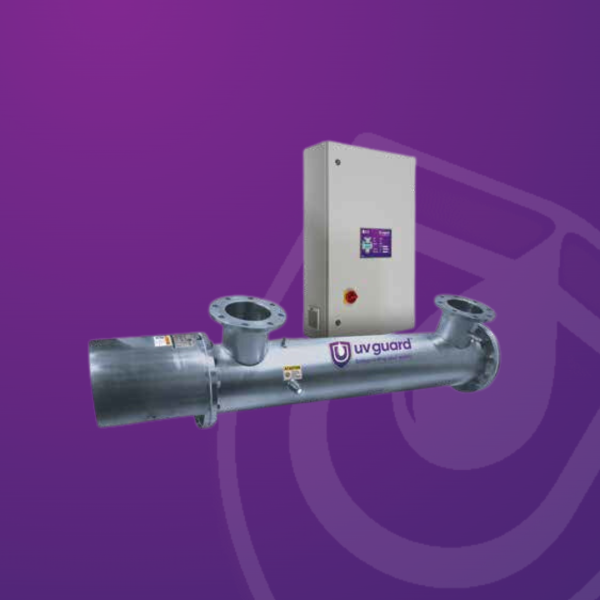

UV Guard X-Series
Description
For pricing information, please call 07 3355 1591 or fill out our enquiry form here.
Compact UV disinfection for large-flow Commercial and Industrial applications. UV Guard’s X-Series offers a range of highly customisable WaterMark-certified UV disinfection systems. Designed for long life with low maintenance, units are ideal for liquids with low UV Transmittance (UVT), high UV dose requirements and large flows (5,00m3/hour and beyond). Suitable for an extensive range of commercial and industrial applications.
Product Specifications
| Model | Flow Rate@ 30mJ/cm2 | Flow Rate @40mJ/cm2 | Inlet/Outlet |
| X1-160 | 41 m3/hr | 31 m3/hr | 3″ PN16 Flange |
| X2-160 | 69 m3/hr | 52 m3/hr | 3″ PN16 Flange |
| X3-160 | 100 m3/hr | 75 m3/hr | 4″ PN16 Flange |
| X4-160 | 131 m3/hr | 99 m3/hr | 4″ PN16 Flange |
| X1-245 | 53 m3/hr | 40 m3/hr | 3″ PN16 Flange |
| X2-245 | 92 m3/hr | 69 m3/hr | 3″ PN16 Flange |
| X3-245 | 135 m3/hr | 101 m3/hr | 4″ PN16 Flange |
| X4-245 | 176 m3/hr | 132 m3/hr | 4″ PN16 Flange |
| X1-440 | 88 m3/hr | 66 m3/hr | 4″ PN16 Flange |
| X2-440 | 133 m3/hr | 100 m3/hr | 4″ PN16 Flange |
| X3-440 | 200 m3/hr | 150 m3/hr | 4″ PN16 Flange |
| X4-440 | 349 m3/hr | 262 m3/hr | 6″ PN16 Flange |
| X5-440 | 588 m3/hr | 441 m3/hr | 8″ PN16 Flange |
| X6-440 | 682 m3/hr | 512 m3/hr | 8″ PN16 Flange |

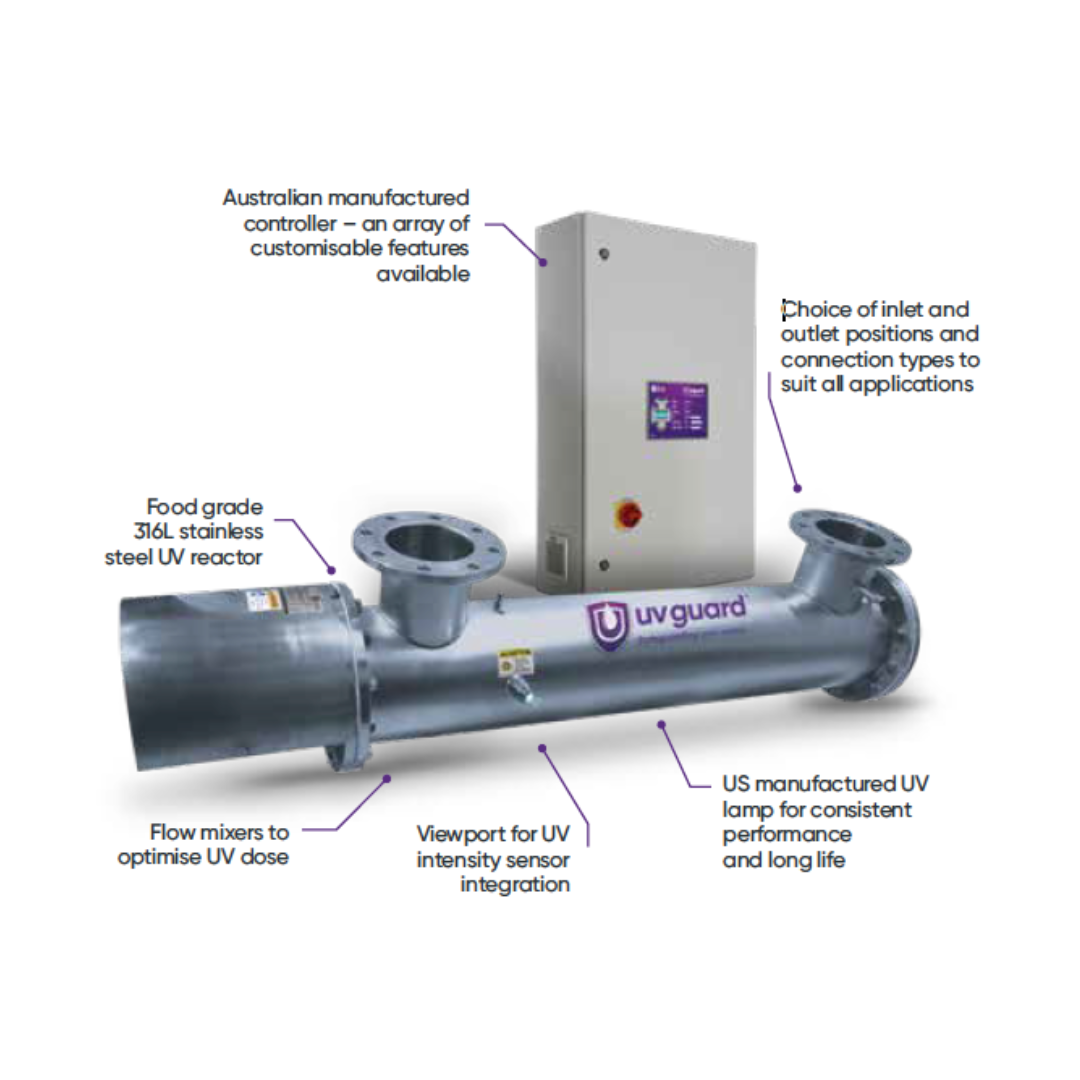

System Benefits –
Australian WaterMark-certified 316L grade stainless steel UV reactor.
Australian manufactured PLC – commercial industry standard with an array of customisable options.
Up to 16,000 hours operational lamp life with UVG LongerLife UV Lamps outlasting standard UVC lamps by up to 77%.
Reduced running costs with UV reactor precisely configured to maximise efficiency and performance.
Maximum flexibility with an extensive range of single and multiple lamped systems with an array of inlet and outlet connection sizes and types.
Space-optimised design allows disinfection of total flow to be achieved through a single reactor, reducing footprint requirements and plumbing infrastructure costs.
